应用
该电缆有多种用途，包括作为连续采煤机的主馈线，泵电缆和电源线。总半导屏蔽层提供与电力线接触之前的任何破坏护套物的保护接地触点。
标准
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

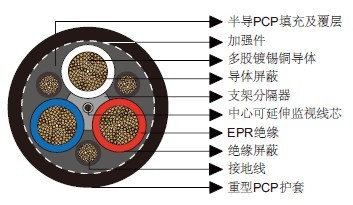

结构
3×导体：柔软的多股镀锡退火铜导体。
导体屏蔽：半导材料（用于电压为3.3/3.3kV及以上的电缆）。
绝缘：EPR。
绝缘屏蔽：半导橡胶。
支架分隔器：半导PCP。
总芯线屏蔽：半导PCP填充及覆层。
3×隙间接地线：柔软的多股镀锡铜导体及半导PCP覆层。
1×中心延伸监视线芯：柔软的多股镀锡铜导体与EPR覆层。
纺织加强件：宽松编织加强件。
护套：重型PCP护套。重型CPE/CSP护套可选。
尺寸和重量
|
标称导体 |
绞股规格 |
绝缘厚度 |
芯线屏蔽 |
监视导体 |
护套厚度 |
标称外径 |
标称重量 |
||
|
绞股规格 |
屏蔽截面 |
绞股规格 |
覆层厚度 |
||||||
|
mm² |
No/mm |
mm |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
|
Type 241.1 |
|||||||||
|
6 |
84/0.30 |
1.5 |
18/0.30 |
1.0 |
24/0.20 |
0.8 |
3.8 |
28.5 |
106 |
|
10 |
77/0.40 |
1.5 |
27/0.30 |
1.0 |
24/0.20 |
0.8 |
3.8 |
31.1 |
127 |
|
16 |
126/0.40 |
1.6 |
42/0.30 |
1.0 |
24/0.20 |
0.8 |
3.9 |
34.1 |
164 |
|
25 |
209/0.40 |
1.6 |
66/0.30 |
1.0 |
24/0.20 |
0.8 |
4.2 |
37.9 |
208 |
|
35 |
285/0.40 |
1.6 |
90/0.30 |
1.0 |
24/0.20 |
0.8 |
4.4 |
41.2 |
254 |
|
50 |
380/0.40 |
1.7 |
120/0.30 |
1.0 |
40/0.20 |
0.8 |
4.9 |
45.9 |
328 |
|
70 |
203/0.67 |
1.8 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
5.3 |
52.2 |
480 |
|
95 |
259/0.67 |
2.0 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
5.8 |
56.7 |
600 |
|
120 |
336/0.67 |
2.1 |
42/0.67 |
1.2 |
40/0.20 |
0.8 |
6.3 |
62.7 |
710 |
|
150 |
427/0.67 |
2.3 |
54/0.67 |
1.2 |
40/0.20 |
0.8 |
6.7 |
68.3 |
865 |
|
185 |
518/0.67 |
2.5 |
63/0.67 |
1.4 |
40/0.20 |
0.8 |
7.3 |
74.9 |
1030 |
|
240 |
672/0.67 |
2.8 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
8.0 |
83.3 |
1300 |
|
300 |
854/0.67 |
3.0 |
98/0.67 |
1.4 |
40/0.20 |
0.8 |
8.7 |
91.2 |
1600 |
|
Type 241.3 |
|||||||||
|
16 |
126/0.40 |
3.0 |
42/0.30 |
1.0 |
24/0.20 |
0.8 |
5.0 |
43.8 |
249 |
|
25 |
209/0.40 |
3.0 |
66/0.30 |
1.0 |
24/0.20 |
0.8 |
5.3 |
47.7 |
315 |
|
35 |
285/0.40 |
3.0 |
90/0.30 |
1.0 |
24/0.20 |
0.8 |
5.6 |
51.1 |
376 |
|
50 |
380/0.40 |
3.0 |
120/0.30 |
1.2 |
40/0.20 |
0.8 |
6.0 |
55.2 |
450 |
|
70 |
203/0.67 |
3.0 |
39/0.67 |
1.2 |
40/0.20 |
0.8 |
6.4 |
60.3 |
576 |
|
95 |
259/0.67 |
3.0 |
48/0.67 |
1.2 |
40/0.20 |
0.8 |
6.8 |
63.8 |
675 |
|
120 |
336/0.67 |
3.0 |
60/0.67 |
1.2 |
40/0.20 |
0.8 |
7.2 |
69.1 |
810 |
|
150 |
427/0.67 |
3.0 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
7.6 |
73.8 |
952 |
|
185 |
518/0.67 |
3.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
8.0 |
79.2 |
1130 |
|
240 |
672/0.67 |
3.0 |
112/0.67 |
1.4 |
40/0.20 |
0.8 |
8.6 |
86.0 |
1380 |
|
300 |
854/0.67 |
3.0 |
144/0.67 |
1.4 |
40/0.20 |
0.8 |
9.1 |
92.6 |
1660 |
|
Type 241.6 |
|||||||||
|
16 |
126/0.40 |
5.0 |
42/0.30 |
1.4 |
24/0.20 |
0.8 |
6.1 |
54.9 |
365 |
|
25 |
209/0.40 |
5.0 |
66/0.30 |
1.4 |
24/0.20 |
0.8 |
6.4 |
58.8 |
440 |
|
35 |
285/0.40 |
5.0 |
90/0.30 |
1.4 |
24/0.20 |
0.8 |
6.7 |
62.2 |
509 |
|
50 |
380/0.40 |
5.0 |
120/0.30 |
1.4 |
40/0.20 |
0.8 |
7.1 |
66.2 |
592 |
|
70 |
203/0.67 |
5.0 |
39/0.67 |
1.4 |
40/0.20 |
0.8 |
7.4 |
71.2 |
727 |
|
95 |
259/0.67 |
5.0 |
48/0.67 |
1.4 |
40/0.20 |
0.8 |
7.9 |
74.8 |
835 |
|
120 |
336/0.67 |
5.0 |
60/0.67 |
1.4 |
40/0.20 |
0.8 |
8.3 |
80.2 |
990 |
|
150 |
427/0.67 |
5.0 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
8.6 |
84.6 |
1140 |
|
185 |
518/0.67 |
5.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
9.0 |
90.0 |
1311 |
|
240 |
672/0.67 |
5.0 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
9.6 |
96.8 |
1576 |
|
300 |
854/0.67 |
5.0 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
10.2 |
103.6 |
1900 |
|
Type 241.11 |
|||||||||
|
25 |
209/0.40 |
7.6 |
66/0.30 |
1.8 |
24/0.20 |
0.8 |
7.8 |
73.2 |
645 |
|
35 |
285/0.40 |
7.6 |
90/0.30 |
1.8 |
24/0.20 |
0.8 |
8.1 |
76.6 |
724 |
|
50 |
380/0.40 |
7.6 |
120/0.30 |
1.8 |
40/0.20 |
0.8 |
8.5 |
80.6 |
825 |
|
70 |
203/0.67 |
7.6 |
39/0.67 |
1.8 |
40/0.20 |
0.8 |
8.9 |
85.7 |
975 |
|
95 |
259/0.67 |
7.6 |
48/0.67 |
1.8 |
40/0.20 |
0.8 |
9.3 |
89.1 |
1088 |
|
120 |
336/0.67 |
7.6 |
60/0.67 |
1.8 |
40/0.20 |
0.8 |
9.7 |
94.4 |
1258 |
|
150 |
427/0.67 |
7.6 |
77/0.67 |
1.8 |
40/0.20 |
0.8 |
10.0 |
98.9 |
1423 |
|
185 |
518/0.67 |
7.6 |
91/0.67 |
1.8 |
40/0.20 |
0.8 |
10.4 |
104.2 |
1610 |
