应用
该铠装电缆主要用作电力馈线，用于需要机械保护和强度的场合，也可作为设备接驳，即运输采矿变电所（采砂）。
标准
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

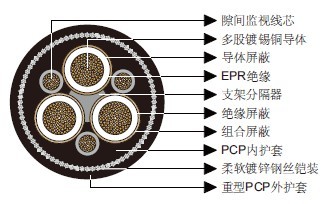

结构
3×导体：柔软的多股镀锡退火铜导体。
导体屏蔽：半导材料（用于电压为3.3/3.3kV及以上的电缆）。
绝缘：EPR。
绝缘屏蔽：半导橡胶。
组合屏蔽（接地线）：镀锡退火铜线与涤纶纤维混合编织。
支架分隔器：半导PCP。
3×隙间监视线芯：柔软的多股镀锡铜导体与EPR覆层。
内护套：PCP护套。CPE/CSP护套可选。
柔软铠装：镀锌低碳（软）钢绞线。
外护套：重型PCP护套。重型CPE/CSP护套可选。
尺寸和重量
|
标称导体 |
绞股规格 |
绝缘厚度 |
芯线屏蔽 |
监视导体 |
柔软铠 |
护套厚度 |
标称外径 |
标称重量 |
|||
|
绞股规格 |
屏蔽截面 |
绞股规格 |
覆层厚度 |
内 |
外 |
||||||
|
mm² |
No/mm |
mm |
No/mm |
mm² |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
|
Type 260.1 |
|||||||||||
|
6 |
84/0.30 |
1.5 |
7/0.25 |
7.2 |
18/0.30 |
1.0 |
7/0.45 |
2.0 |
3.8 |
36.9 |
230 |
|
10 |
77/0.40 |
1.5 |
7/0.25 |
8.6 |
27/0.30 |
1.0 |
7/0.45 |
2.0 |
3.8 |
39.5 |
265 |
|
16 |
126/0.40 |
1.6 |
7/0.25 |
9.6 |
42/0.30 |
1.0 |
7/0.90 |
2.5 |
4.0 |
46.5 |
410 |
|
25 |
209/0.40 |
1.6 |
7/0.25 |
11.3 |
66/0.30 |
1.2 |
7/0.90 |
2.5 |
4.3 |
50.4 |
495 |
|
35 |
285/0.40 |
1.6 |
7/0.25 |
12.4 |
90/0.30 |
1.2 |
7/0.90 |
2.5 |
4.6 |
53.8 |
576 |
|
50 |
380/0.40 |
1.7 |
7/0.25 |
14.1 |
120/0.30 |
1.2 |
7/0.90 |
2.5 |
5.0 |
58.4 |
679 |
|
70 |
203/0.67 |
1.8 |
7/0.25 |
16.5 |
39/0.67 |
1.2 |
7/0.90 |
2.5 |
5.4 |
64.6 |
837 |
|
95 |
259/0.67 |
2.0 |
7/0.25 |
18.2 |
39/0.67 |
1.2 |
7/0.90 |
3.5 |
6.0 |
71.4 |
1003 |
|
120 |
336/0.67 |
2.1 |
7/0.25 |
20.3 |
42/0.67 |
1.4 |
7/0.90 |
3.5 |
6.4 |
77.2 |
1176 |
|
150 |
427/0.67 |
2.3 |
7/0.25 |
22.3 |
54/0.67 |
1.4 |
7/0.90 |
3.5 |
6.9 |
83.0 |
1372 |
|
185 |
518/0.67 |
2.5 |
7/0.30 |
30.2 |
63/0.67 |
1.4 |
7/0.90 |
3.5 |
7.4 |
90.0 |
1610 |
|
240 |
672/0.67 |
2.8 |
7/0.30 |
33.6 |
77/0.67 |
1.6 |
7/1.25 |
4.5 |
8.2 |
103.0 |
2150 |
|
300 |
854/0.67 |
3.0 |
7/0.40 |
50.1 |
98/0.67 |
1.6 |
7/1.25 |
4.5 |
8.8 |
112.1 |
2590 |
|
Type 260.3 |
|||||||||||
|
16 |
126/0.40 |
3.0 |
7/0.25 |
13.1 |
42/0.30 |
1.4 |
7/0.90 |
2.5 |
5.3 |
56.9 |
566 |
|
25 |
209/0.40 |
3.0 |
7/0.25 |
14.8 |
66/0.30 |
1.4 |
7/0.90 |
2.5 |
5.6 |
60.8 |
661 |
|
35 |
285/0.40 |
3.0 |
7/0.25 |
15.8 |
90/0.30 |
1.4 |
7/0.90 |
3.5 |
5.9 |
66.3 |
779 |
|
50 |
380/0.40 |
3.0 |
7/0.25 |
17.2 |
120/0.30 |
1.4 |
7/0.90 |
3.5 |
6.3 |
70.4 |
886 |
|
70 |
203/0.67 |
3.0 |
7/0.25 |
18.6 |
39/0.67 |
1.4 |
7/0.90 |
3.5 |
6.6 |
75.3 |
1044 |
|
95 |
259/0.67 |
3.0 |
7/0.25 |
20.3 |
39/0.67 |
1.4 |
7/0.90 |
3.5 |
7.1 |
78.9 |
1156 |
|
120 |
336/0.67 |
3.0 |
7/0.30 |
27.2 |
42/0.67 |
1.6 |
7/0.90 |
3.5 |
7.4 |
84.7 |
1350 |
|
150 |
427/0.67 |
3.0 |
7/0.40 |
39.6 |
54/0.67 |
1.6 |
7/1.25 |
4.5 |
7.8 |
95.0 |
1779 |
|
185 |
518/0.67 |
3.0 |
7/0.40 |
42.2 |
63/0.67 |
1.8 |
7/1.25 |
4.5 |
8.2 |
100.4 |
1990 |
|
240 |
672/0.67 |
3.0 |
7/0.40 |
46.6 |
77/0.67 |
1.8 |
7/1.25 |
4.5 |
8.8 |
107.3 |
2300 |
|
300 |
854/0.67 |
3.0 |
7/0.50 |
63.2 |
98/0.67 |
1.8 |
7/1.25 |
4.5 |
9.4 |
115.4 |
2710 |
|
Type 260.6 |
|||||||||||
|
16 |
126/0.40 |
5.0 |
7/0.25 |
17.2 |
42/0.30 |
1.4 |
7/0.90 |
3.5 |
6.4 |
70.1 |
796 |
|
25 |
209/0.40 |
5.0 |
7/0.25 |
18.6 |
66/0.30 |
1.4 |
7/0.90 |
3.5 |
6.7 |
74.0 |
897 |
|
35 |
285/0.40 |
5.0 |
7/0.25 |
18.6 |
90/0.30 |
1.6 |
7/0.90 |
3.5 |
7.0 |
77.4 |
990 |
|
50 |
380/0.40 |
5.0 |
7/0.25 |
21.3 |
120/0.30 |
1.6 |
7/0.90 |
3.5 |
7.3 |
81.2 |
1102 |
|
70 |
203/0.67 |
5.0 |
7/0.25 |
23.4 |
39/0.67 |
1.6 |
7/1.25 |
4.5 |
7.7 |
90.7 |
1456 |
|
95 |
259/0.67 |
5.0 |
7/0.30 |
29.2 |
39/0.67 |
1.6 |
7/1.25 |
4.5 |
8.1 |
94.8 |
1610 |
|
120 |
336/0.67 |
5.0 |
7/0.30 |
31.7 |
42/0.67 |
1.8 |
7/1.25 |
4.5 |
8.5 |
100.2 |
1807 |
|
150 |
427/0.67 |
5.0 |
7/0.40 |
45.7 |
54/0.67 |
1.8 |
7/1.25 |
4.5 |
8.9 |
106.2 |
2080 |
|
185 |
518/0.67 |
5.0 |
7/0.40 |
48.4 |
63/0.67 |
1.8 |
7/1.25 |
4.5 |
9.3 |
111.5 |
2300 |
|
240 |
672/0.67 |
5.0 |
7/0.40 |
52.8 |
77/0.67 |
1.8 |
7/1.25 |
4.5 |
9.9 |
118.4 |
2630 |
|
300 |
854/0.67 |
5.0 |
7/0.50 |
71.5 |
98/0.67 |
1.8 |
7/1.25 |
4.5 |
10.4 |
126.3 |
3060 |
|
Type 260.11 |
|||||||||||
|
25 |
209/0.40 |
7.6 |
7/0.25 |
23.7 |
66/0.30 |
2.0 |
7/1.25 |
4.5 |
8.1 |
92.7 |
1380 |
|
35 |
285/0.40 |
7.6 |
7/0.30 |
30.2 |
90/0.30 |
2.0 |
7/1.25 |
4.5 |
8.4 |
96.7 |
1528 |
|
50 |
380/0.40 |
7.6 |
7/0.30 |
31.7 |
120/0.30 |
2.0 |
7/1.25 |
4.5 |
8.7 |
100.6 |
1664 |
|
70 |
203/0.67 |
7.6 |
7/0.30 |
34.1 |
39/0.67 |
2.0 |
7/1.25 |
4.5 |
9.1 |
105.8 |
1867 |
|
95 |
259/0.67 |
7.6 |
7/0.40 |
47.5 |
39/0.67 |
2.0 |
7/1.25 |
4.5 |
9.6 |
110.7 |
2080 |
|
120 |
336/0.67 |
7.6 |
7/0.40 |
51.0 |
42/0.67 |
2.2 |
7/1.25 |
4.5 |
9.9 |
115.8 |
2290 |
|
150 |
427/0.67 |
7.6 |
7/0.40 |
53.7 |
54/0.67 |
2.2 |
7/1.25 |
4.5 |
10.3 |
120.5 |
2510 |
|
185 |
518/0.67 |
7.6 |
7/0.40 |
57.2 |
63/0.67 |
2.2 |
7/1.25 |
4.5 |
10.7 |
125.9 |
2750 |
